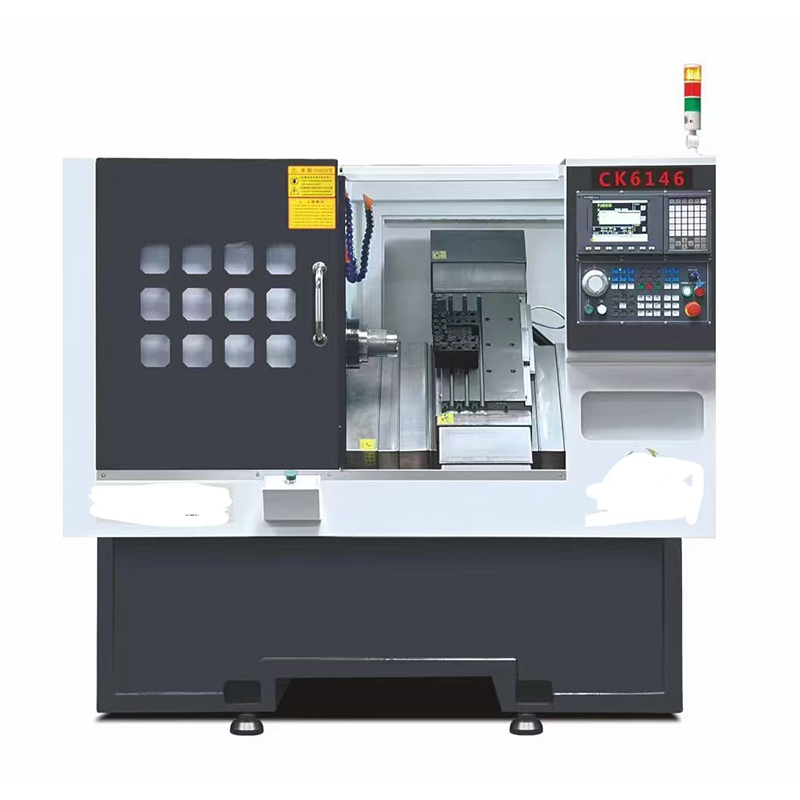

CNC Lathe with Automatic Tool Turret4.jpg

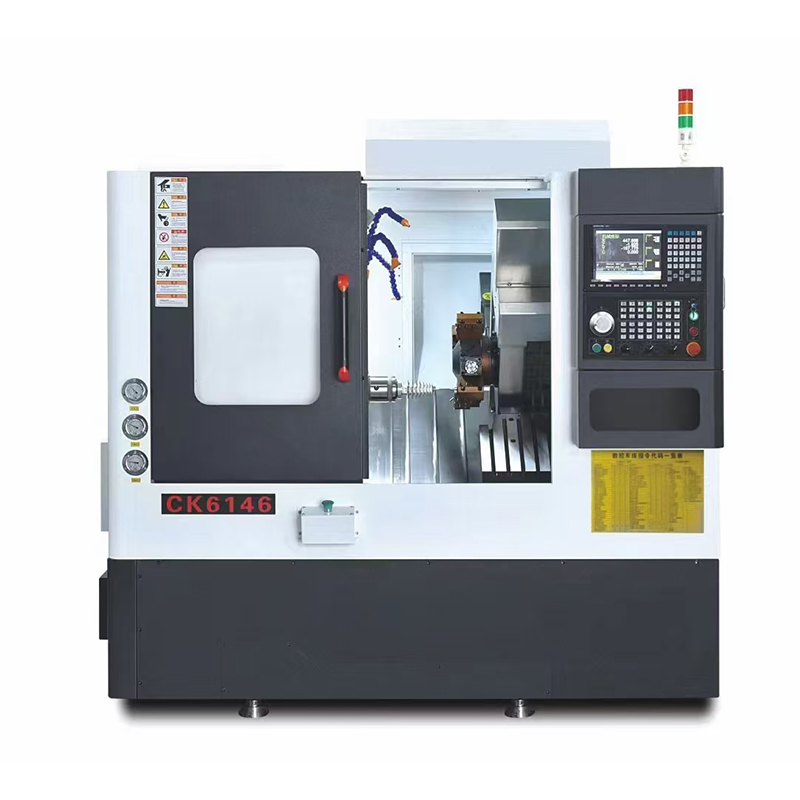

CNC Lathe with Automatic Tool Turret1.jpg

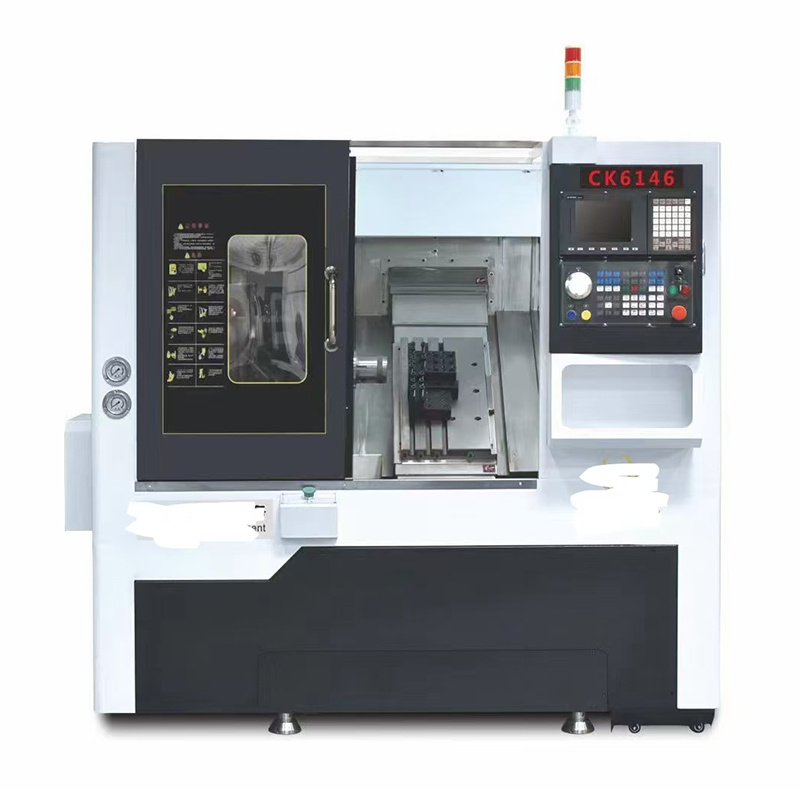

CNC Lathe with Automatic Tool Turret3.jpg

CNC Lathe with Automatic Tool Turret

CNC Turret Lathe: The Perfect Fusion of Innovative Design and Efficient Production.

The CNC turret lathe has emerged as a cornerstone of modern precision manufacturing, thanks to its innovative design philosophy and exceptional functional capabilities. The machine features a fully enclosed protective structure, constructed from high-strength materials and precision welding technology. This design not only effectively isolates external contaminants such as dust and cutting fluid but also significantly enhances operational safety and equipment longevity. Integrated within the protective housing is an intelligent chip removal system, which combines optimized flow-guiding channels with a high-speed spiral conveyor to swiftly eliminate metal debris generated during machining. This ensures a clean workspace, minimizes manual cleaning frequency, and boosts continuous operational efficiency.

    Contact us
    Product Information

    Product parameters

    Type

    Turning center

    max.length of workpiece(mm)

    200

    machining capacity

    Heavy Duty

    max.weight of workpiece(kg)

    50

    no.of spindles

    single phase

    number of axes

    2

    travel(x axis)(mm)

    1000

    travel(z axis)(mm)

    380

    positioning accuracy(mm)

    ±0.005

    repeatability(x/y/z)(mm)

    voltage

    380V

    tool post stations

    7

    weight(kg)

    2500

    warranty

    1year

    range of spindle sppeed(r.p.m)

    1-5000

    cutting torque

    2

    width of bed (mm)

    30

    place of origin

    Guangdong,China

    dimension(l*w*h)

    2*1.6*1.7m

    model number

    YY-STA36/46

    cnc control system

    FANUC

    key selling points

    Multifuntional/High safety level/High-accuracy/Energy saving/Eco-friendly/Competitive Price

    machinery test report

    Provided

    video outgoing-inspection

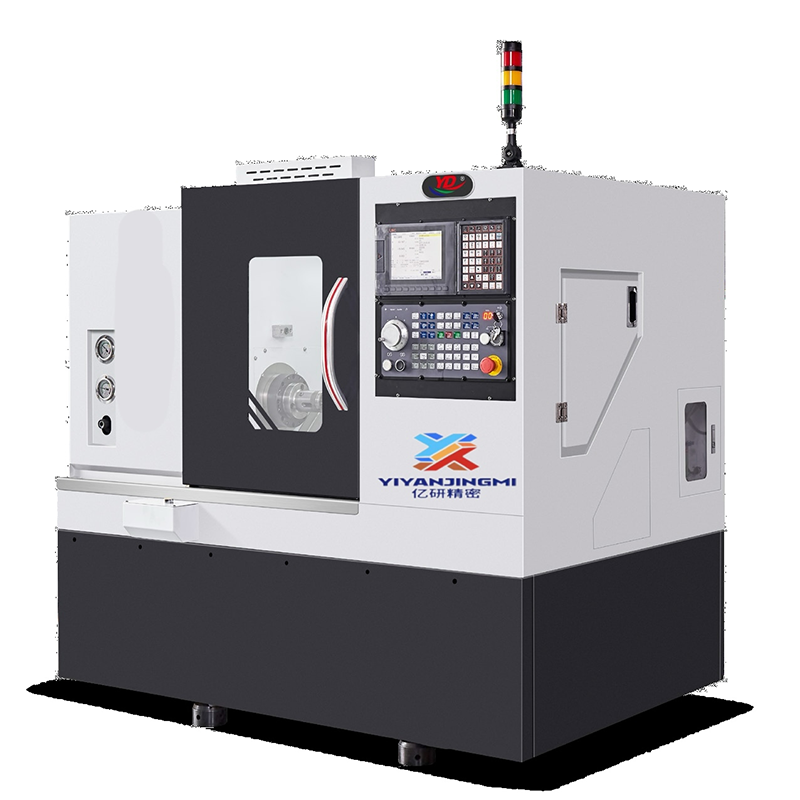

    jiqi
    CNC Lathe with Automatic Tool Turret3
    CNC Lathe with Automatic Tool Turret4

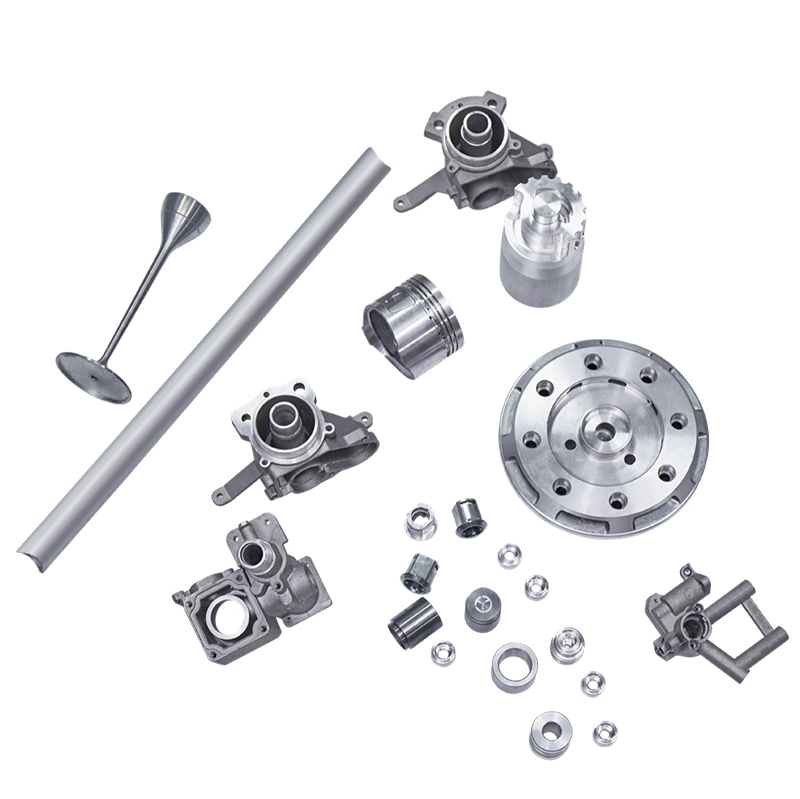

    p[ro4

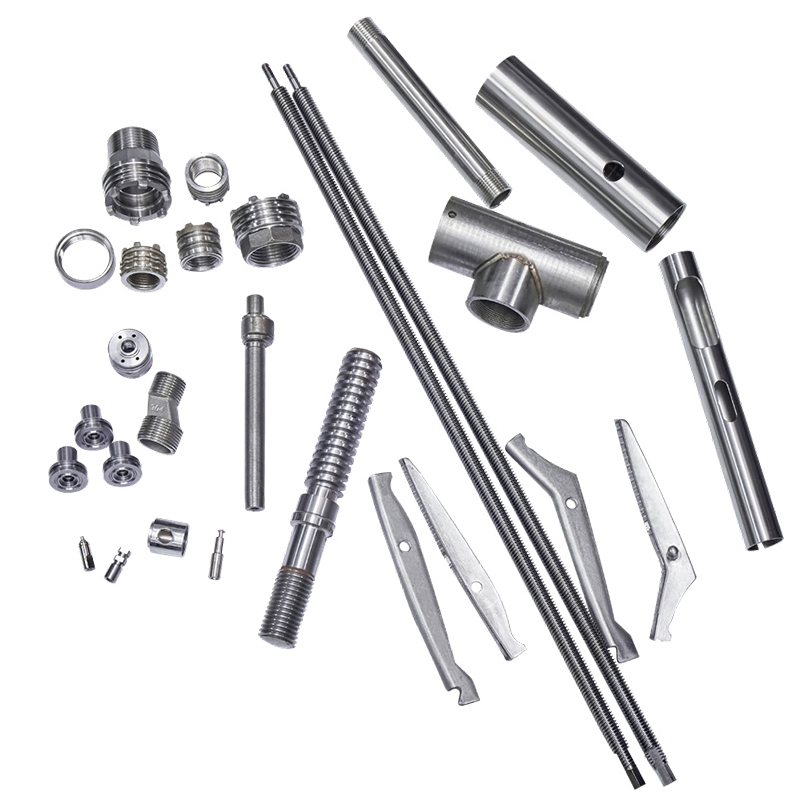

    pro2
    rt4

    Products advantage

    • icon-5-27- (2)

      Customized service

    • icon-5-27- (1)

      Improved accuracy

    • iconn

      Multi-axis linkage and composite machining

    • icon-5-27- (3)

      Green development

    • icon-5-27- (4)

      Easy to operate

    • CE icon

      Energy-efficient and efficient

    What does it do

    • ※ In terms of tool configuration, the lathe employs a turret-style tooling system characterized by compact and flexible toolholder layouts.

      ※ This system enables rapid multi-tool switching, drastically reducing non-cutting time.

      ※ The toolholder modules can be customized to meet user-specific requirements—for example, reinforced alloy toolholders can be selected for machining high-hardness materials to enhance rigidity, or multi-functional dynamic turrets can be configured for complex surface machining, addressing demands from roughing to finishing.

      ※ Additionally, the system supports tool pre-setting and automatic compensation, further ensuring consistent machining accuracy.

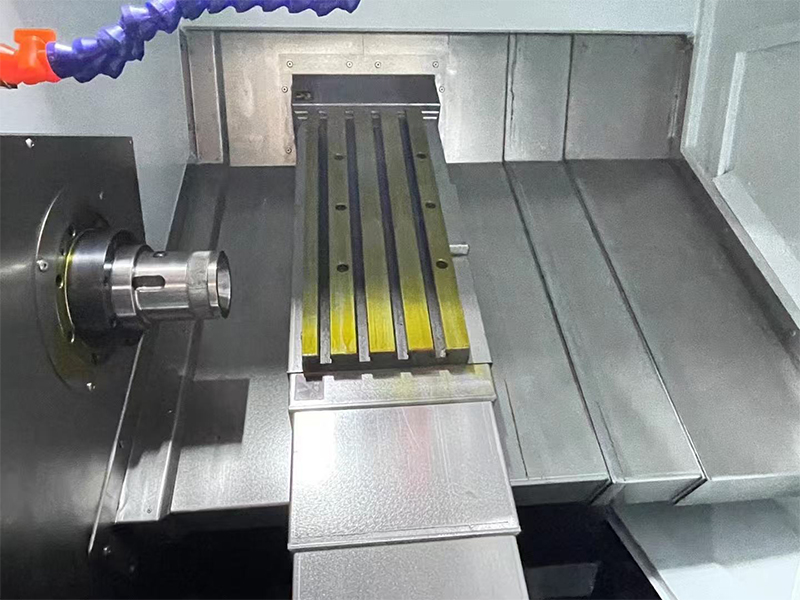

    CNC Lathe with Automatic Tool Turret6

    Why choose it?

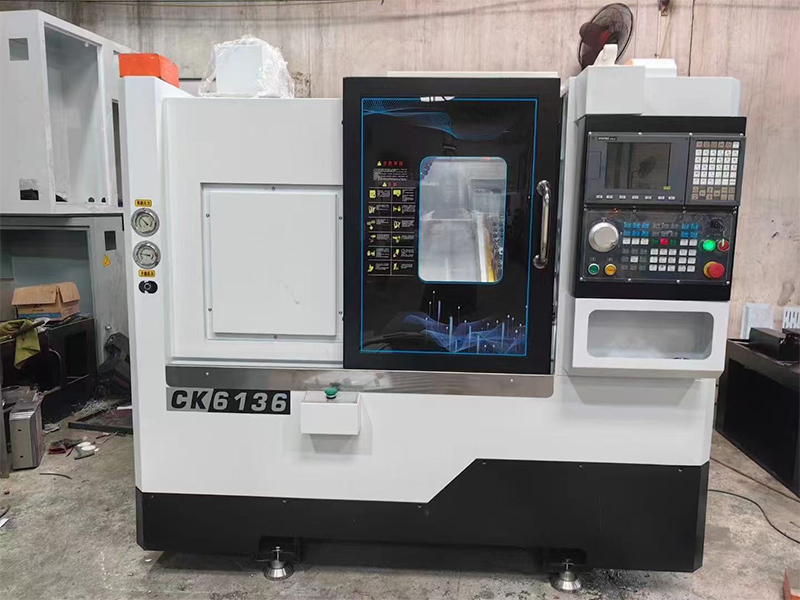

    CNC Lathe with Automatic Tool Turret5

    Function

    Functionally, the machine excels at automating diverse complex tasks, including precision turning of cylindrical, conical, and irregular rotary surfaces, as well as efficient cutting of metric and imperial threads. Through its integrated CNC system, it seamlessly performs compound operations such as drilling, reaming, boring, and countersinking.

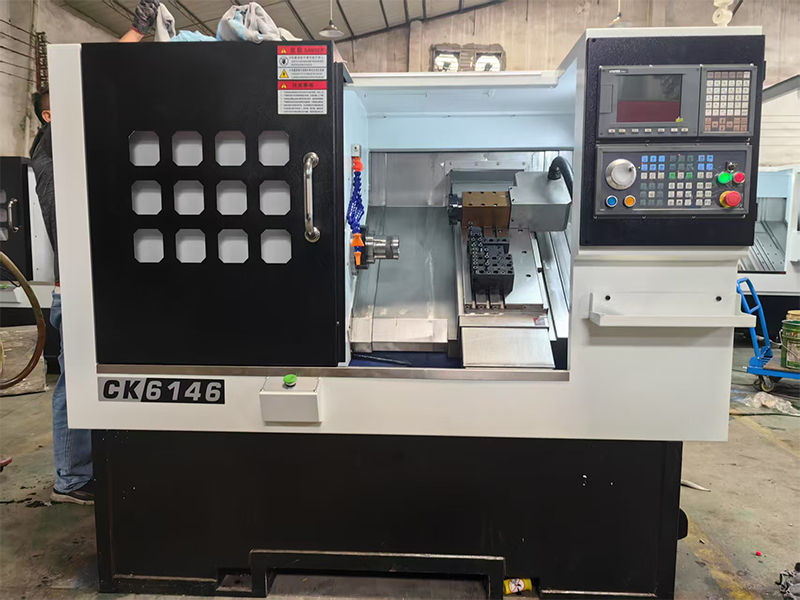

    CNC Lathe with Automatic Tool Turret7

    Application

    Functionally, the machine excels at automating diverse complex tasks, including precision turning of cylindrical, conical, and irregular rotary surfaces, as well as efficient cutting of metric and imperial threads. Through its integrated CNC system, it seamlessly performs compound operations such as drilling, reaming, boring, and countersinking.

    Technology leading

    As an ideal solution for high-efficiency production, the CNC turret lathe leverages modular design and intelligent upgrades to increase output while reducing energy consumption. It empowers enterprises to achieve cost-effective manufacturing and transition toward smart production, finding extensive applications in aerospace, mold manufacturing, and high-end equipment sectors. By continuously driving advancements in industrial manufacturing technology, this machine exemplifies the future of precision engineering.
