Affordable CNC Turning & Milling Lathe - Power Turret China

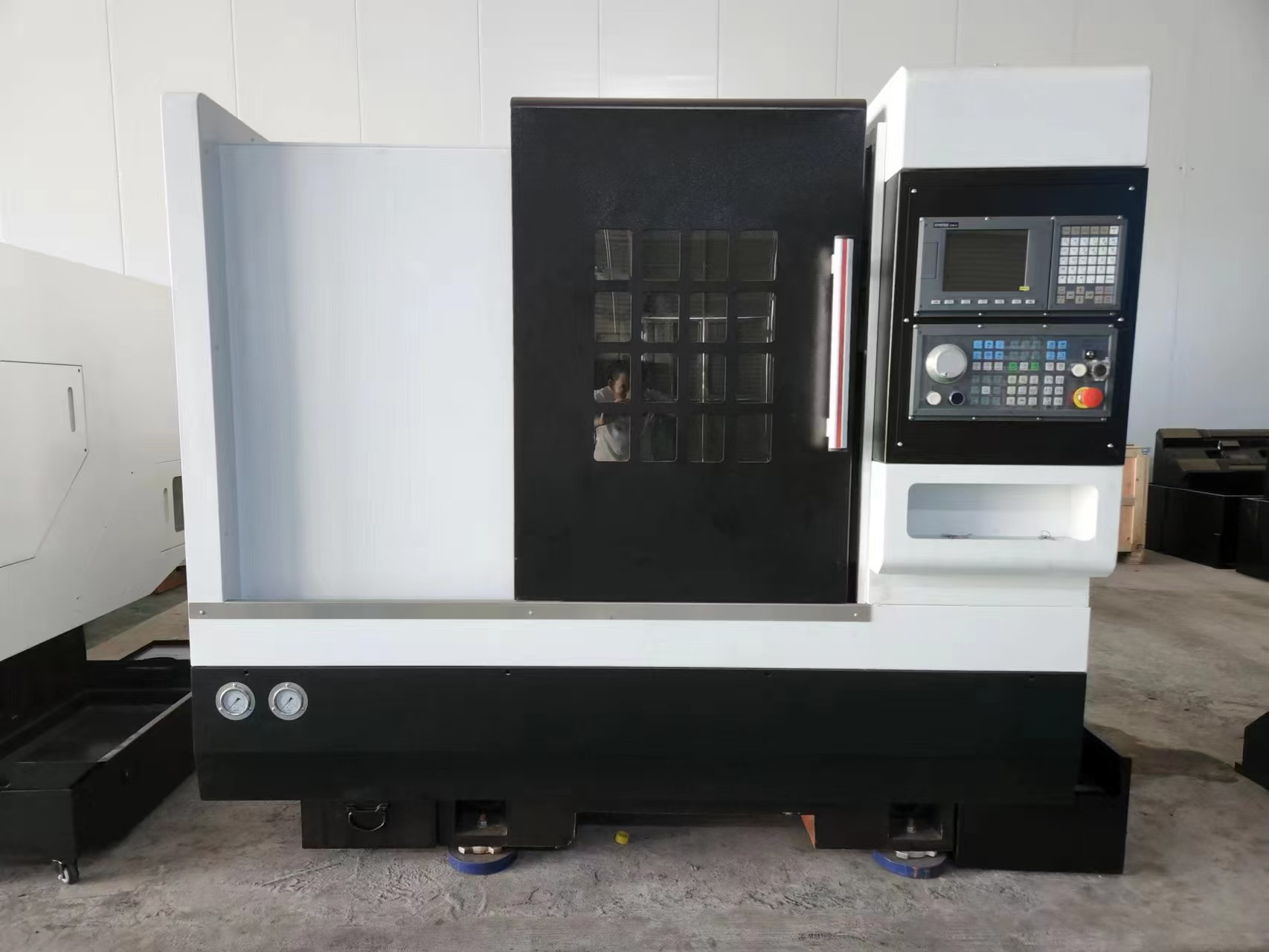

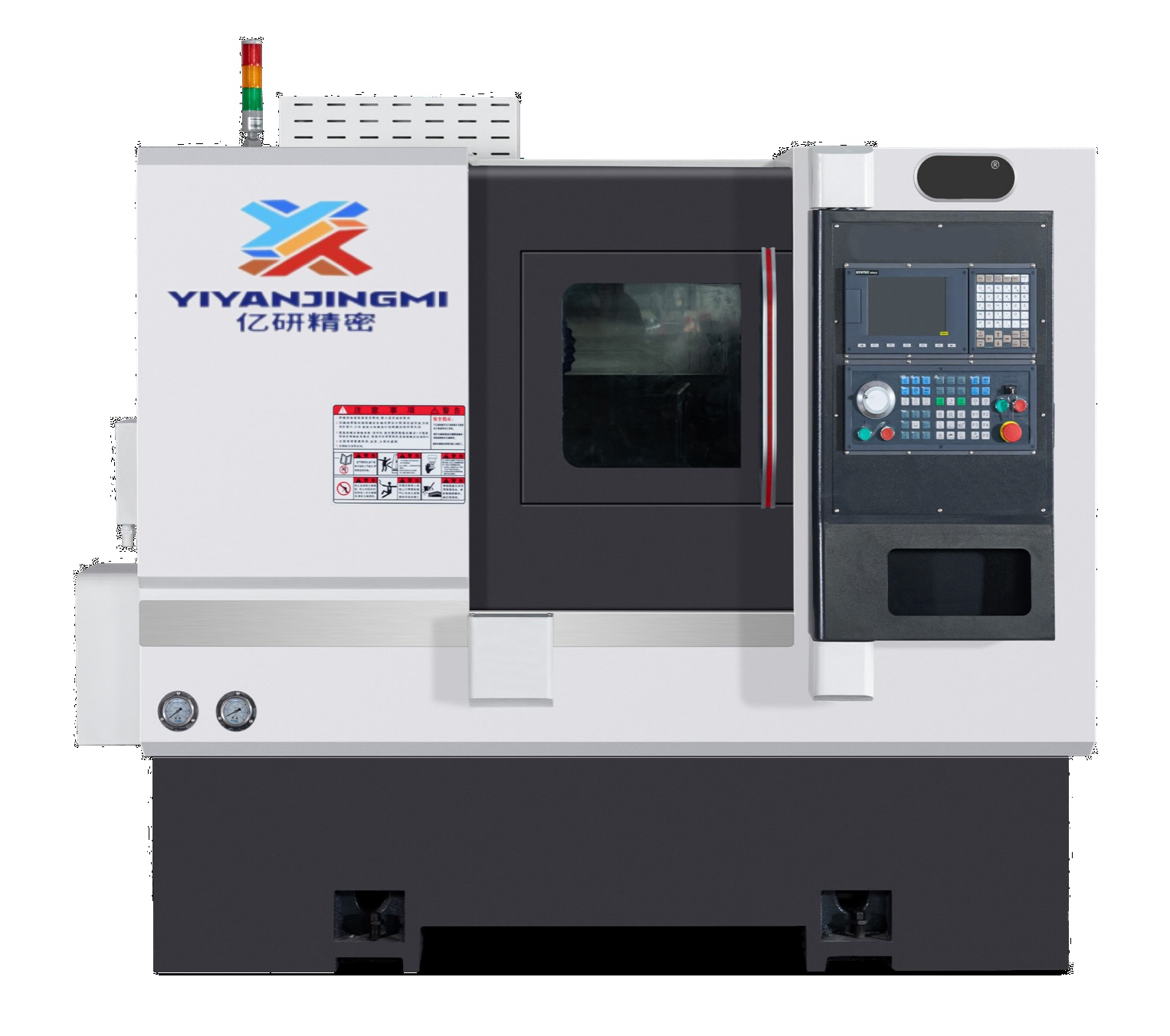

A servo turret machine is a high-precision CNC lathe equipped with an advanced servo-driven tool turret, enabling fast, accurate, and automated tool changes for complex machining operations. Designed for efficiency, it integrates servo motor control to ensure smooth indexing and rigid tool positioning, minimizing downtime and enhancing productivity.
This machine is ideal for high-speed turning, milling, drilling, and threading applications, supporting multiple tools in a compact turret design. The servo-driven mechanism offers superior repeatability (±0.001mm) and rapid tool-switching speeds, making it suitable for mass production of precision components in industries like automotive, aerospace, and medical devices.
Key features include rigid construction, dynamic balancing, and compatibility with live tooling for multitasking. With user-friendly CNC interfaces and programmable automation, it ensures consistent quality while reducing manual intervention. The servo turret machine represents a perfect blend of speed, accuracy, and versatility for modern manufacturing demands.
- Operating system FANUC
- Spindle Through Hole Diameter 46 mm(for bar stock upto 45 mm)
- Spindle Max Speed 5000 rpm(standard)
- Motor Power 7.5kw
- Center Height(Above/Below Table) Above:70mm;Below:135 mm
- Hydraulic System Junsan11VP20(HydraulicOil:68#)
- Rotary Cylinder Chaoquan 6-inch
- X/Z Axis Servo Maxsine 1.5 KW
- Lead Screw Taiwan HIWIN32/10(C2 Grade)
- Guide Rail Taiwan HIWIN 30(P4Grade Ball Screw)
- Lead Screw Pre-Tension Preheating andPre-TensionTechnology
- Repositioning Accuracy 0.003 mm
- Max Traverse Speed(X/Z Axis) 24 m/min
- Max Travel (X/Z Axis) X-axis:960mm;Z-axis:380 mm
- Guide Rail LubricationPump Huangjinjia(2L)
- Cooling System Taiwan DeyangDY-2V-18
- Tool Holders 5pcs
- Fixture 46mm(1pc)
- Pull Rod 46mm(1pc)
- Guard Fully Guarded
- Flying Tool Disc Includes 1.8 KW Servo Motor
- Automatic Feeder Feeder with 4 Tubes
- Base Integral Casting Base
